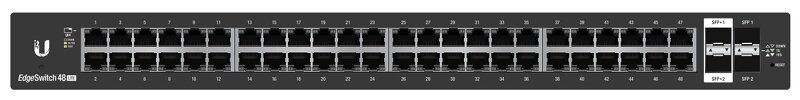

Advanced Switching Technology for the MassesBuild and expand your network with Ubiquiti Networks® EdgeSwitch™ Lite, part of the EdgeMAX® line of products. The EdgeSwitch Lite is a fully managed, Gigabit switch, deliveringrobust performance and intelligent switching for growing networks.The EdgeSwitch Lite offers an extensive suite of advanced Layer 2switching features and protocols, and also provides Layer 3 routingcapability.Features• (48) Gigabit RJ45 Ports• (2) SFP+ Ports• (2) SFP Ports• (1) Serial Console Port• Non-Blocking Throughput: 70 Gbps• Switching Capacity: 140 Gbps• Forwarding Rate: 104.16 Mpps• Maximum Power Consumption: 56W• Rack- or Wall-Mountable• DC Input Option (Redundant or Stand-Alone)Switching PerformanceThe EdgeSwitch Lite offers the forwarding capacity to simultaneouslyprocess traffic on all ports at line rate without any packet loss.For its total, non-blocking throughput, the 24-port models support up to 26 Gbps, while the 48-port models support up to 70 Gbps.Fiber ConnectivityThe EdgeSwitch Lite provides fiber connectivity options for your growing networks. The 24-port models include two SFP ports, providing up to 1 Gbps uplinks.For high-capacity uplinks, the 48-port models include two SFP and two SFP+ ports, providing up to 10 Gbps uplinks.Fiber ConnectivityThe EdgeSwitch provides fiber connectivity options for your growingnetworks. The 8, 16, and 24-port models include two SFP ports,providing up to 1 Gbps uplinks. For high-capacity uplinks, the 48-portmodels include two SFP and two SFP+ ports, providing uplinks of up to 10 Gbps.Comprehensive User InterfaceDesigned for convenient management, the EdgeSwitchLite Configuration Interface allows administrators to configure andmonitor switch features in a graphical user interface.For advanced users, an industry-standard command-lineinterface (CLI) is available through the serial console port, telnet, and SSH.Powerful FunctionalityThe EdgeSwitch Lite uses a sophisticated operating system thatprovides basic switching features, and a variety of advanced featuresincluding: • MSTP/RSTP/STP • VLAN, Private VLAN, Voice VLAN • Link Aggregation • DHCP Snooping, IGMP Snooping • TACACS+, RADIUS, 802.1X, MAC Filtering, ACL• DiffServ, CoS • Static Routing, Policy-Based RoutingPackage Contents* EdgeSwitch Lite ES-48-LITE* Power Cord * Rack-Mount Brackets (Qty. 2)* Bracket Screws (M4, Qty. 8)* Mounting Screws (#10-32 x 5/8", Qty. 4)* Cage Nuts (#10-32 x 5/8", Qty. 4)* Quick Start GuideSpecifikationerDimensions 443 x 43 x 286 mm (17.44 x 1.69 x 11.26")Weight with Rack-Mount Brackets Included3.65 kg (8.05 lb)Weight with Rack-Mount Brackets Excluded3.56 kg (7.85 lb)Total Non-Blocking Throughput 70 GbpsSwitching Capacity 140 GbpsForwarding Rate 104.16 MppsMax. AC Power Consumption56WPower Method AC 100-240VAC/50-60 Hz, Universal InputPower Method DCDC 56W, 25 to 16V, with 2.5 mm DC Power Inline ConnectorPower Supply AC/DC, Internal, 56W DCLEDs Per Port - Serial Console PortN/ALEDs Per Port - RJ45 Data Ports Speed/Link/ActivityLEDs Per Port - SFP Data PortsSpeed/Link/ActivityNetworking Interfaces (48) 10/100/1000 Mbps RJ45 Ethernet Ports(2) 1/10 Gbps SFP+ Ethernet Ports(2) 1 Gbps SFP Ethernet PortsManagement Interface (1) RJ45 Serial Port, Ethernet In/Out BandCertifications CE, FCC, ICWallmount Yes, 1U HighESD/EMP Protection Air: ±24 kV, Contact: ±24 kVOperating Temperature-5 to 40° C (23 to 104° F)Operating Humidity 5 to 95% NoncondensingShock and Vibration ETSI300-019-1.4 Standard
